Safe View
The see-through roll shutter that provides physical security while keeping the storefront alive. Passersby see merchandise. Retailers showcase products 24 hours a day. Security does not require hiding.
Why Safe View
Standard shutters block entry — and hide the store. Safe View does one without the other.
Standard security shutters solve one problem: they block entry. But they create another problem: they turn a vibrant storefront into a blank, dark wall. After hours, potential customers see nothing. Impulse browsing stops. The store’s presence on the street disappears.
Safe View solves both problems. It is a see-through roll shutter system that provides physical security while maintaining visibility into the store. For B2B partners — dealers, specifiers and contractors — offering Safe View allows you to serve retail clients who refuse to choose between safety and storefront appeal.
Talius manufactures Safe View in North America, using extruded aluminum grille and perforated profiles with a rolling carriage assembly.
Anatomy
Six components. Engineered for see-through security.
01
Curtain Profile
Extruded aluminum Grille 56 or Perforated 56 — open profiles that allow light and visibility to pass through.
02
Panel Box
Roll-formed aluminum housing containing the rolling carriage assembly and rolled curtain.
03
Reinforcement Bar
Additional solid profile added to increase maximum size. Engineered, not optional, for larger spans.
04
Guide Rails
GRM-66 or GR-75 extruded aluminum rails.
05
Rolling Carriage Assembly
Adjusts to the changing roll-up diameter for smooth operation across the full height.
06
Operator
Motorized (recommended — standard limit or Somfy RTS) or manual crank.
Profile Combinations
Two profiles. One reinforcement bar. Three answers.

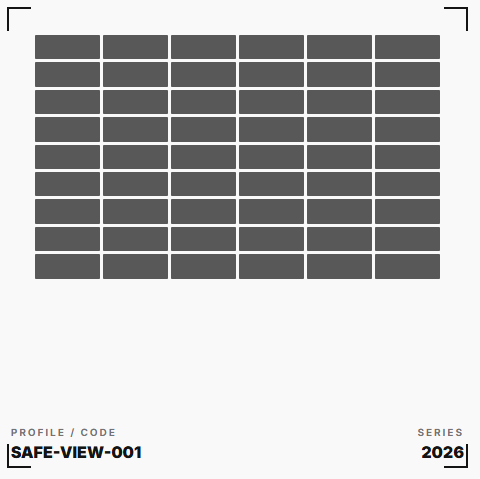

- Grille 56
42%
Light Transmissiong
Cover Width
2-3/16" (56 mm)
Slat Thickness
1/2" (13.5 mm)
Hole Shape
Rectangle
Hole
Dimensions
3-1/8" × 1-3/16" (80 × 30 mm)
Hole Spacing
3/4" (20 mm)
Light Transmission
42%
Choose Grille 56 for maximum visibility — large rectangular openings give the clearest view of merchandise.
- Perforated 56
29%
Cover Width
2-3/16" (56 mm)
Slat Thickness
1/2" (13.5 mm)
Hole Shape
Oval
Hole
Dimensions
9/16" × 1/4" (15 × 6 mm)
Hole Spacing
3/16" (5 mm)
Light Transmission
29%
Choose Perforated 56 when slightly more privacy is desired while maintaining see-through capability.
- Reinforcement Bar
+ Span
Cover Width
1-3/16" (30 mm)
Slat Thickness
1/2" (13.5 mm)
Purpose
Added to Grille or Perforated profiles to increase max width and area
Not optional for larger openings — an engineered addition that allows the curtain to span greater widths while maintaining structural integrity.
- Finish: Powdered polymer polyester (standard). Silver only. Custom painting is not possible due to the openings in the profile.
Size Limitations
Width grows as you add reinforcement.
Maximum height stays fixed at 220-15/32″ (5.6 m / ≈18.4 ft) for all combinations. Width increases as reinforcement bars are added. Channel Sales will confirm which combination is required based on the unit size.
| PROFILE COMBINATION | MAX WIDTH (A2) | MAX HEIGHT (B1) | MAX AREA | WEIGHT / AREA |
|---|---|---|---|---|
| Grille / Perf only | 118-1/16" (3.0 m) | 220-15/32" (5.6 m) | 11,625 in² (7.5 m²) | 0.0089 lbs/in² (6.26 kg/m²) |
| 3 Grille/Perf + 1 Reinf. Bar | 137-3/4" (3.5 m) | 220-15/32" (5.6 m) | 16,275 in² (10.5 m²) | 0.0100 lbs/in² (7.06 kg/m²) |
| 2 Grille/Perf + 1 Reinf. Bar | 157-1/2" (4.0 m) | 220-15/32" (5.6 m) | 18,600 in² (12.0 m²) | 0.0106 lbs/in² (7.44 kg/m²) |
| 1 Grille/Perf + 1 Reinf. Bar | 177-1/8" (4.5 m) | 220-15/32" (5.6 m) | 20,925 in² (13.5 m²) | 0.0117 lbs/in² (8.21 kg/m²) |
Critical note for dealers
The reinforcement bar is not optional for larger openings. It is an engineered addition. When quoting, the Talius Channel Sales team will confirm which profile combination is required based on the unit size.
- Key Selling Point
24-Hour
Merchandising.
Safe View allows retailers to keep their products visible even when the store is closed. This is not a secondary benefit — it is a primary selling point. The store’s presence on the street does not disappear at closing time.
Solid Aluminum Roll Shutters
Complete blackout when closed.
Safe View · Perforated 56
Slightly more privacy. Still see-through.
Safe View · Grille 56
Maximum visibility. Clear merchandise view.
B2B Applications
Where Safe View excels.
Business Storefronts
Retail That Stays Visible
Shopping centres, jewelry stores, supermarkets, electronics retailers and any ground-floor retail location face a trade-off: security versus visibility. Safe View eliminates the trade-off — the 42% (Grille 56) or 29% (Perforated 56) light transmission allows passersby to see merchandise while the physical barrier prevents entry.
Buildings & Commercial Spaces
Mixed-Use & Ground-Floor
Office buildings, mixed-use developments and commercial properties often have ground-floor retail or display areas. Standard solid shutters make the building look closed and unwelcoming. Safe View maintains an active appearance — passersby see light, movement, and displays.
Entryways & Windows
Counter Enclosures & Interior
Interior applications also benefit from see-through security. Counter enclosures for high-value items can be secured without creating a dark, uninviting space — pharmacy pickup windows, liquor store counters, electronics displays, gun and cigarette cabinets, museum and gallery cases.
Benefits for retail clients
- After-hours window shopping continues
- Reduced risk of smash-and-grab theft
- No need for expensive display windows behind the shutter
- Professional appearance that does not look like a fortress
Specific interior applications: pharmacy pickup windows after hours, liquor store counter enclosures, electronics retailer display cabinets, gun and cigarette cabinets, museum and gallery display cases.
24-Hour Security
Physical barrier that does not hide.
Standard solutions fail in one of two ways: alarm systems detect but do not prevent entry; solid shutters prevent entry but hide the store. Safe View provides the best of both.
- Physical Security
- Extruded aluminum profiles (not steel, for corrosion resistance)
- GRM-66 or GR-75 guide rails
- Locking options to prevent lifting
- Optional reinforcement bar for larger spans
- Rolling carriage assembly for smooth, reliable operation
- Visibility
- 29–42% light transmission
- Clear sightlines through grille or perforated openings
- No obstruction of window displays
- Professional appearance
Corrosion Resistanc
Aluminum + stainless. Not steel.
Steel grilles rust over time — especially in coastal environments or areas with road salt. Safe View is made of aluminum and stainless-steel components. The extruded aluminum profiles are naturally corrosion-resistant. The powder polymer polyester finish adds additional protection.
Corrosion resistance
More resistant to rain and humidity.
Temperature tolerance
More resistant to temperature fluctuations.
Lighter weight
Easier operation across the full curtain.
No rust stains
Building facades stay clean over the long term.
Retrofit & Operation
Tailored to your existing space.
- Retrofit Capabilities
- Multiple width combinations — from 118″ to 177″
- Fixed maximum height of 220" (most standard storefronts)
- Surface-mount or recessed-mount options
- No need to modify existing window or door frames
Each unit is made-to-order based on exact field measurements of existing openings. Channel Sales removes guesswork by confirming the required profile combination.
- Operator Options
Motorized (Recommended)
• Standard limit motors (hard-wired)
• Somfy RTS (radio, programmable)
• Building automation integration
• Remote via smart device
Manual
•Torsion spring and crank rod
• Available only if weights comply with spring/gear options
• Contact Channel Sales to confirm
Safe View units are typically installed on large storefronts. Manual cranks may be high or awkward to reach — motorized operation is recommended for most installations.
Locking Options
Three locks. One critical compatibility rule.
Critical B2B note
Do not specify manual sliding bar locks or centre key locks for motorized Safe View units. Failure to disengage manual locks before motor operation will severely damage the roll shutter curtain. For motorized units, specify Talius Hanger Locks (automatic, concealed in the panel box).
| LOCK TYPE | SECURITY LEVEL | BEST FOR | MOTORIZED COMPATIBLE? |
|---|---|---|---|
| Manual Sliding Lock Bars | Low | Counter enclosures, security not a priority | No |
| Centre Key Lock (Both Sides) | Medium | Counter enclosures, torsion spring units | No |
| Talius Hanger Locks | High | Storefronts, motorized units | Yes |
Why Partner With Talius
40+ years. 100+ dealers. 20,000+ installs.
For over 40 years, Talius has manufactured exterior protection systems in North America. The company supports over 100 authorized dealers and has completed more than 20,000 installations across the continent. When you specify Talius, you are not buying a generic imported grille — you are buying an engineered system backed by a manufacturer that understands North American building codes, weather conditions and installation practices.
Made-to-order manufacturing
No stockholding. Each unit built to exact dimensions.
Profile combinations
Channel Sales confirms which combination (Grille/Perf + reinforcement bars) is required.
Operator flexibility
Manual or motorized (Somfy RTS).
Corrosion-resistant materials
Aluminum and stainless steel.
Rolling carriage assembly
Standard on all Safe View units for smooth operation.
Partner Zone access
CAD drawings, installation guides, wiring diagrams, and technical specifications.
Channel sales support
Direct access to technical experts for project-specific questions.
FAQ
Frequently Asked Questions
Common Safe View questions from dealers, specifiers and installers.
01 What is the difference between Grille 56 and Perforated 56?
02 Can Safe View be custom painted to match building colours?
03 What is the maximum size for Safe View?
04 Is Safe View as secure as solid Talius roll shutters?
05 Can Safe View be motorized and integrated with home automation?
Conclusion
Add Safe View to your storefront security portfolio.
Retail clients face a unique challenge. Standard solid security shutters protect the store but hide the merchandise. Alarm systems detect entry but do not prevent it. Safe View solves both problems — a physical barrier against break-ins while maintaining 24-hour visibility into the store.
For dealers and contractors, adding Safe View to your Talius lineup allows you to serve retail clients who have rejected solid shutters in the past. Offer SAFE Mini for high-security applications. Offer Safe View when the client says, “I need to keep my windows visible.”
